HP3511B

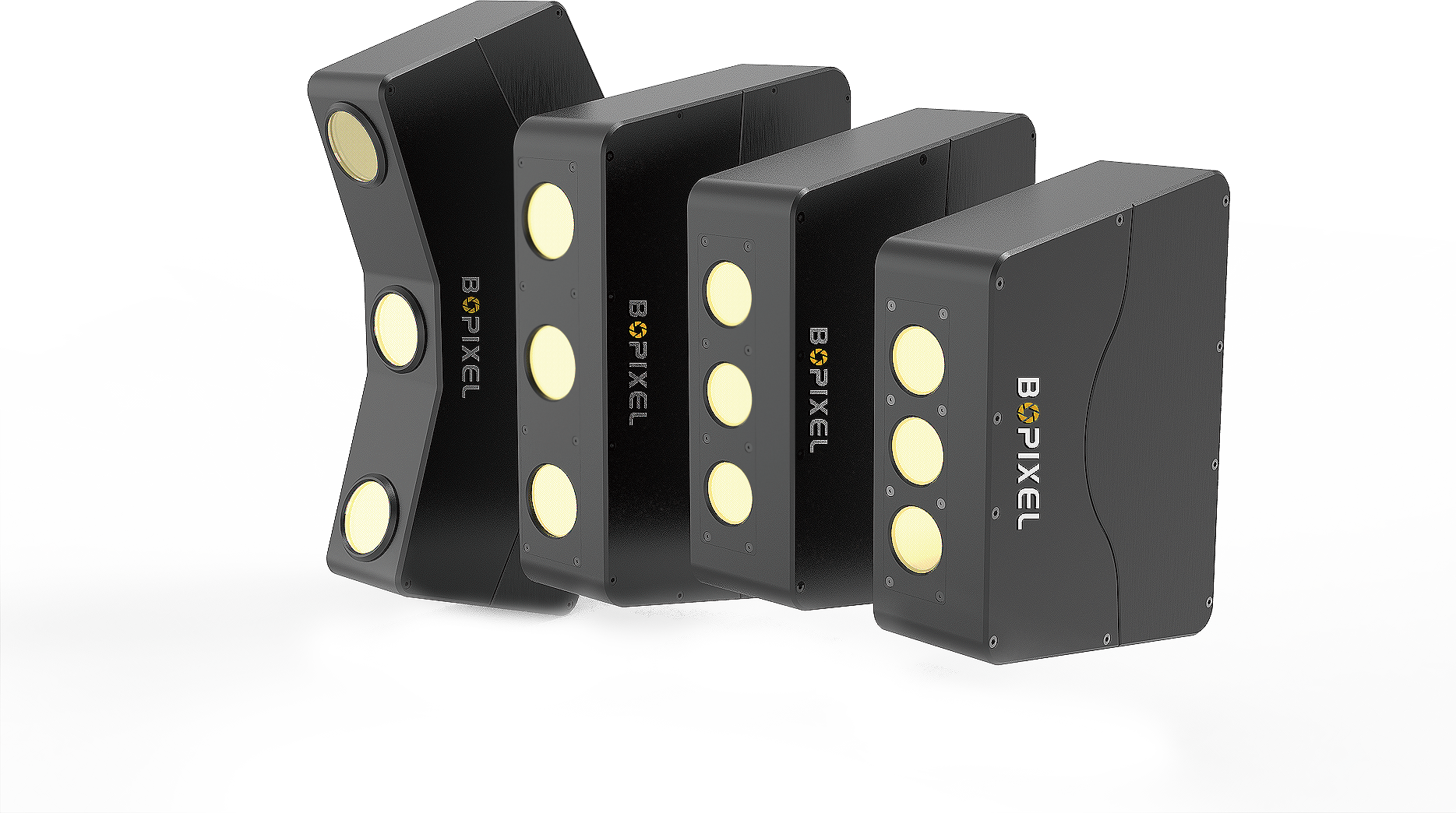

RINDO HP series products 10 million level point cloud data, em bedded GPU,support AI expansion, effectively solve high reflection, shadow occlusion problems\Solid appearance, compact structure, support IP65.
Features
- The amount of point cloud data reaches 10 Maga
- Effectively solve high reflection, shadow and occlusion problems
- Compact and durable, reaching IP (Ingress Protection) 65 standard
Specifications
-
- Working Distance(mm)
- 110
- Depth of Field(mm)
- 7
-
- FOV (mm)
- 45x35
- DLP
- 1280x720
-
- CMOS Resolution
- 5M
- XY Resolution
- 20μm
-
- Repeatability 3
- 1μm
- Frame Rate
- ≤3 FPS
-
- Light Source
- 459nm
- Input Voltage
- 24V（5A）
-
- Interface
- GigE

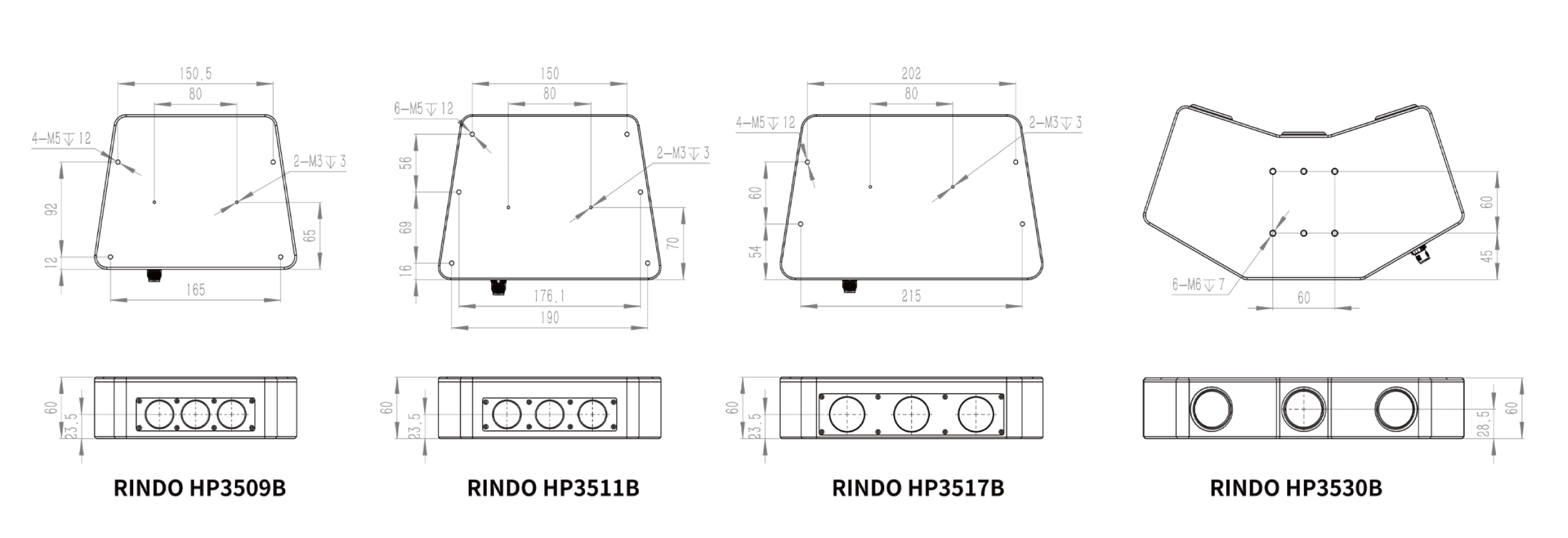

Dimensions
