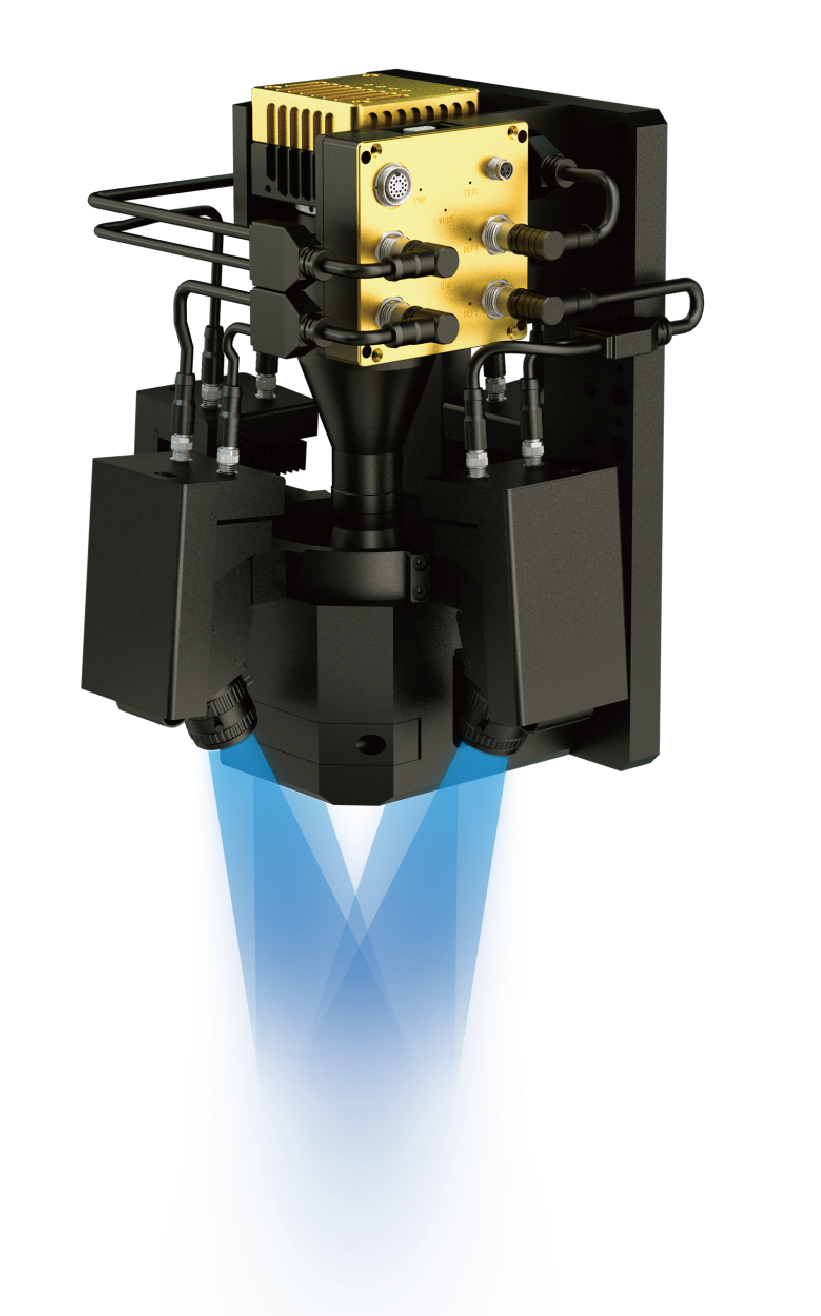

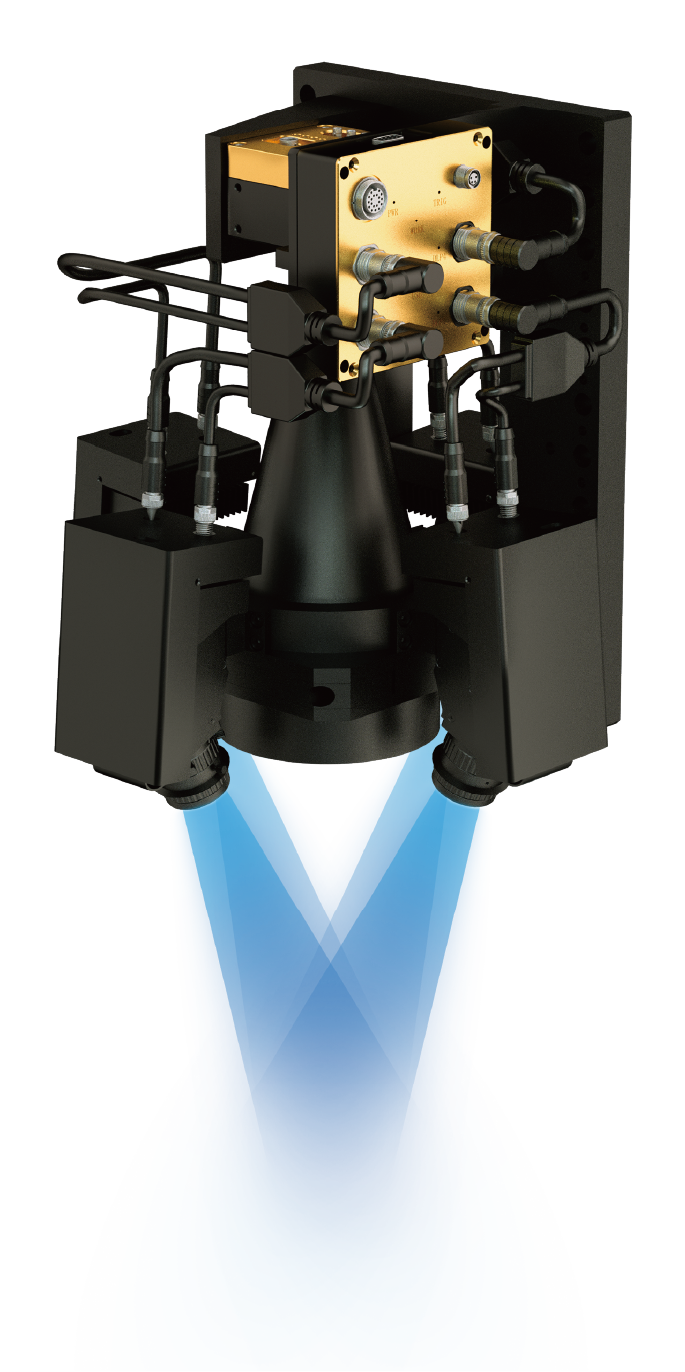

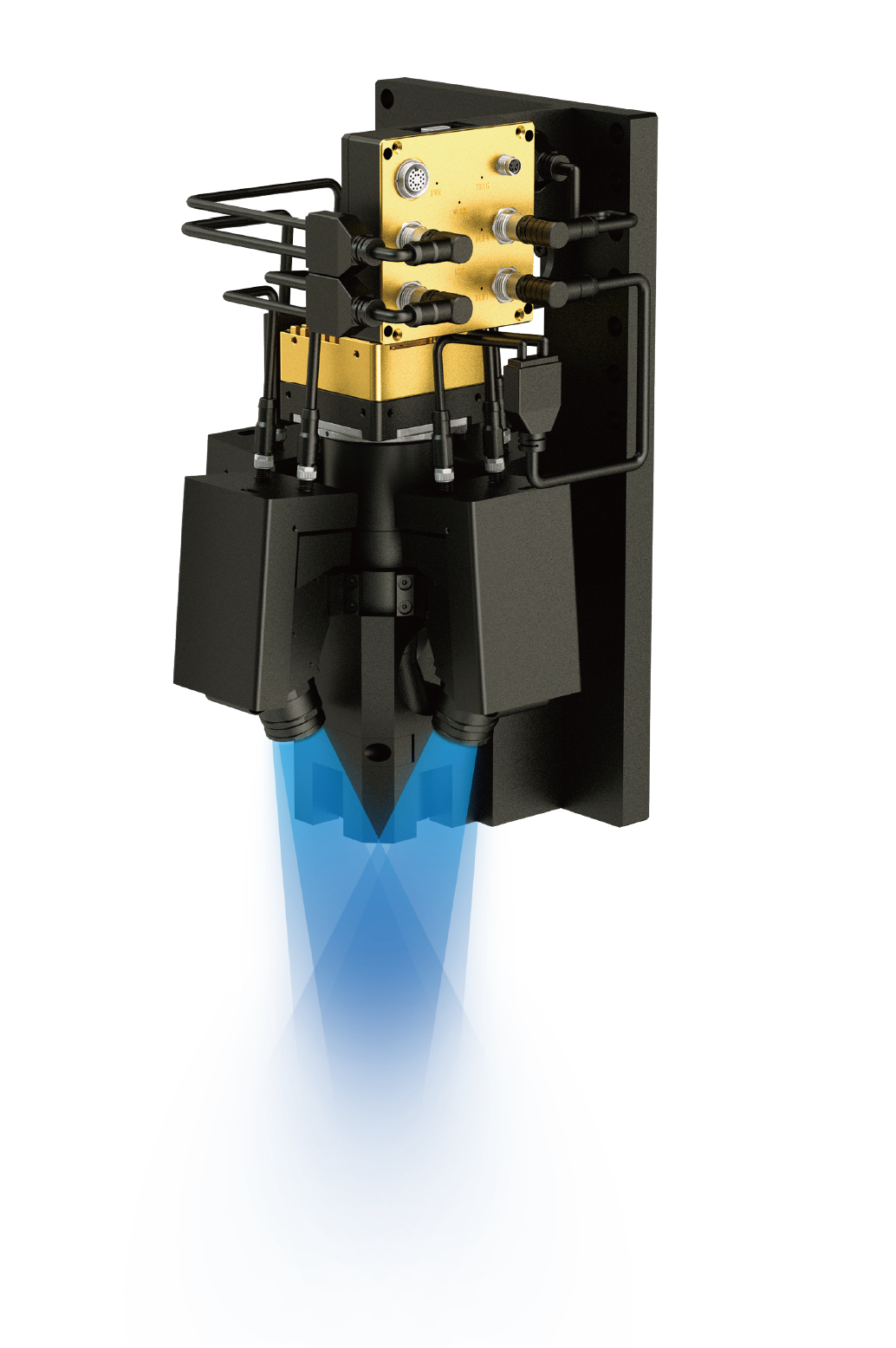

High-Cost-Performance 8M, 16M, 25M Multi-Light Source Systems
High-Cost-Performance 8M, 16M, 25M Multi-Light Source Systems
The RINDO HR series products have a z-axis repeatability of up to 50nm, a frame rate of up to 228FPS, 65 million points of cloud data, a Sharm projectiondesign, and a high depth of field, effectively solving the problems of high reflectivity and shadow obstruction. They are widely used in high-precision inspection scenarios such as semiconductor wafers, chips, and SMT.
Features
- · Flexible Resolution & Field of View: Configurable with 8M, 16M,
- or 25M resolution. Field of view ranges from 12.8x12.8mm to 105x105mm to suit diverse application needs.
- · Self-Developed Core Components: All core components are independently
- researched and developed, ensuring system performance is autonomous and controllable.
- · Modular Light Source Configuration: Supports single, dual, or quad light source combinations,
- adapting to varied application scenarios and budget requirements.
- · Scenario-Specific Optimization: Specially optimized for applications such as SMT AOI/SPI,
- and PIN header inspection.
- DLP
-
All 1280×720 912×1140 1920×1080
More >
- CMOS Resolution
-
All 3M 5M 12M 25M 65M
More >
- Xy Resolution
-
All <5μm <10μm <20μm <50μm <100μm <500μm <1000μm
More >
- Z-Axis Repeatability
-
All <5μm <10μm <20μm <50μm <100μm <500μm <1000μm
More >
- Frame Rate
-
All <=2.5 <=7.5 <=15
More >
- Light Source
-
All Default White Light Default Blue Light
More >
- Interface
-
All GigE USB_3.0 CXP
More >
Expand
