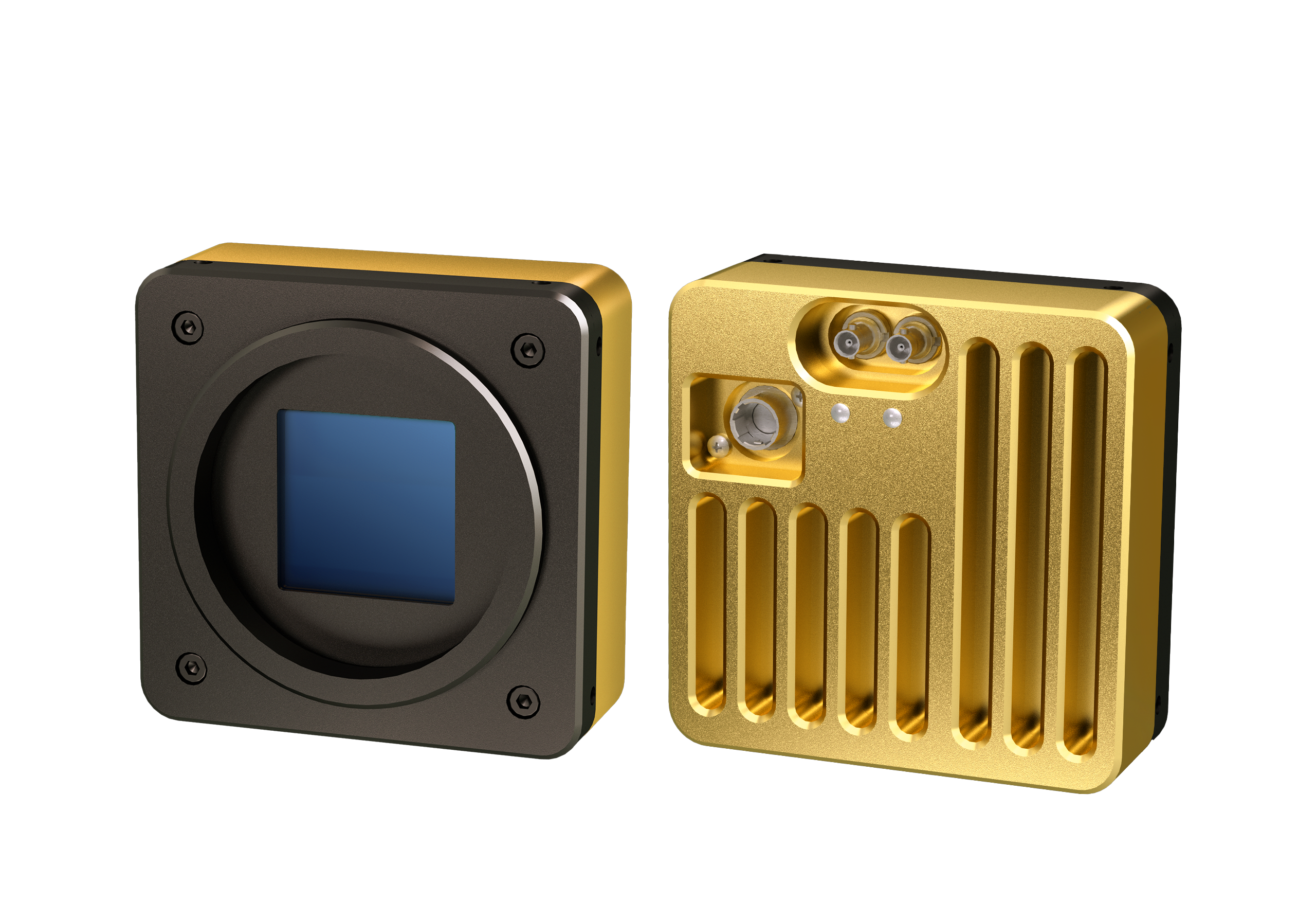

21MP CXP-12X4Lane Model
The 21MP camera is equipped with Gpixel's GSPRINT4521 sensor, which can capture images at up to 228fps and has a CXP P-12 x 4Lane output. It combines high resolution and high speed, with a pixel size of 4.5μm, and is compatible with M58/F/M42 interfaces while maintaining high resolution. It is ideal for miniaturization and high pixel size requirements.
Features
- Sensor: GSPRINT4521
- Interface:4 Lane CoaXPress, support PoCXP
- Support CXP-12, with maximum frame rate up to 228FPS
- Dimension: 80mm x 80mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
- DLP
-
All 1280×720 912×1140 1920×1080
More >
- CMOS Resolution
-
All 3M 5M 12M 25M 65M
More >
- Xy Resolution
-
All <5μm <10μm <20μm <50μm <100μm <500μm <1000μm
More >
- Z-Axis Repeatability
-
All <5μm <10μm <20μm <50μm <100μm <500μm <1000μm
More >
- Frame Rate
-
All <=2.5 <=7.5 <=15
More >
- Light Source
-
All Default White Light Default Blue Light
More >
- Interface
-
All GigE USB_3.0 CXP
More >
Expand
Product Model | Resolution (M) | CMOS | Color | Frame Rate | Number Of Pixels HxV | Target Surface | Pixel Size (um) | Lens Mount | Remark |
|---|
21 | GSPRINT4521 | mono/color | 228 | 5120X4096 | 23x18. 4mm (对角:29.5mm) | 4.5x4.5 | F/M42/M58 | CXP-12/-10-6/-3, MicroBNC connector×4 ,Straight/Right Angle | |
21 | GSPRINT4521 | mono/color | 228 | 5120X4096 | 23x18. 4mm (对角:29.5mm) | 4.5x4.5 | C | CXP-12/-10-6/-3, MicroBNC connector×4 ,Straight/Right Angle | |
14 | GSPRINT5514 | mono/color | 340 | 4608X3072 | 25.34 x 16.90 mm | 5.5 | F/M42/M58 | CXP-12/-10/-6/-3, 4x MicroBNC connectors, side-mounted | |
14 | GSPRINT5514 | mono/color | 340 | 4608X3072 | 25.34 x 16.90 mm | 5.5 | F/M42/M58 | CXP-12/-10/-6/-3, 4x MicroBNC connectors, side-mounted | |
25 | PYTHON25k | mono/color | 84 | 5120X5120 | 23x23mm | 4.5 | F/M42/M58 | CXP-12/-10/-6/-3, 4x MicroBNC connectors, direct insertion | |
25 | PYTHON25k | mono/color | 84 | 5120X5120 | 23x23mm | 4.5 | F/M42/M58 | CXP-12/-10/-6/-3, 4x MicroBNC connectors, direct insertion |
