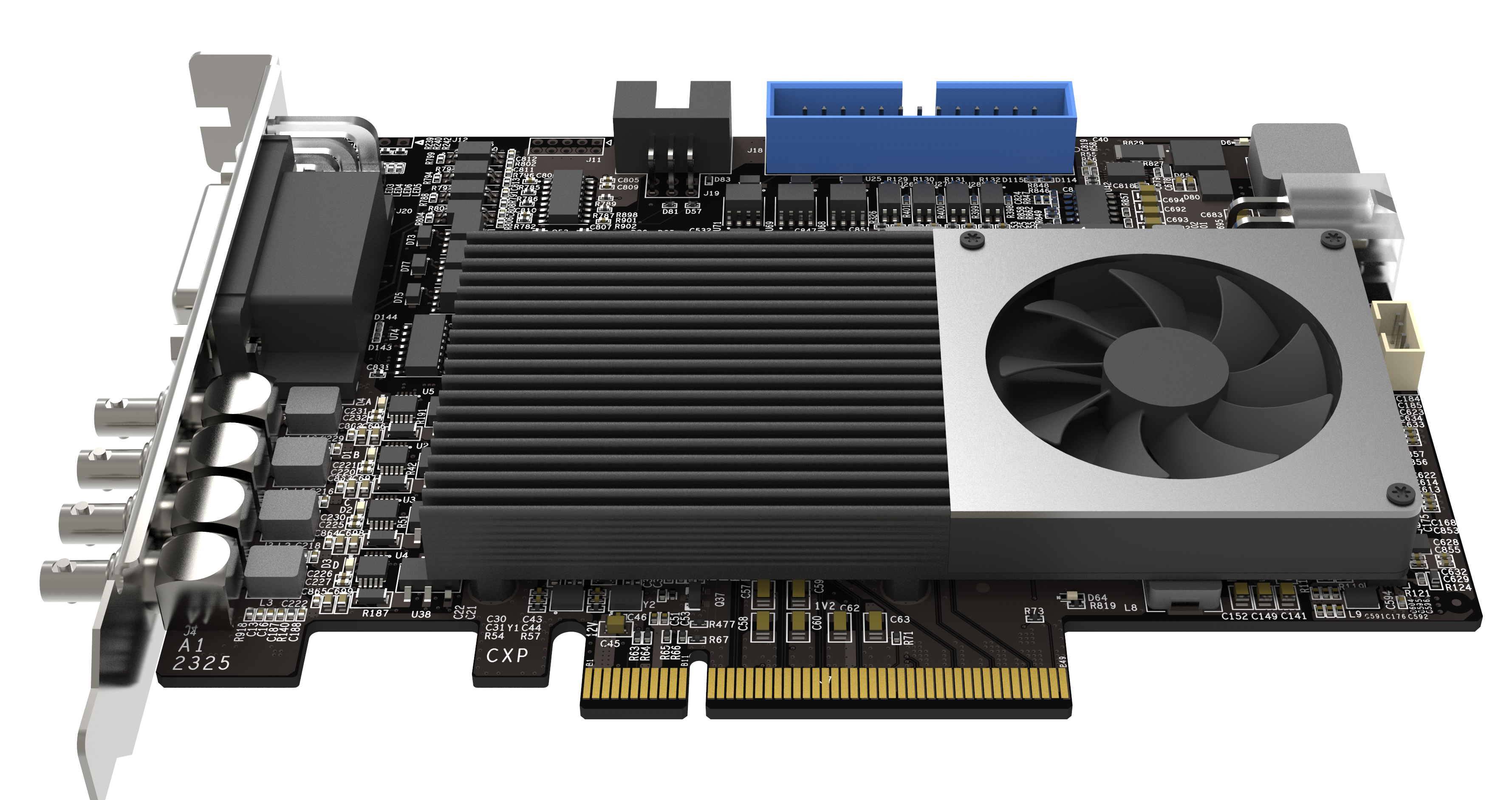

BO-CXP12X4(6X4）-Frame Grabber-Frame Grabber-PRODUCTS-博视像元

Home> Products> Frame Grabber> Frame Grabber> BO-CXP12X4(6X4）

Features

Up to 4-channel single camera single Data Stream frame capture card
Supports CoaXPress 1.1/2.0 protocol standards
Fully supports CXP-6\CXP-12 rates up to 6.25 \12.5Gbps
Supports the disorderly access of industrial camera cables
Support GenTL Producer, GenICam application programming interface
Company client, compatible with various CXP industrial cameras, supports parameter configuration and preview
Flex DMA PCIe transmission engine, frame capture and transmission are completely completed by hardware, without occupying CPU
4-channel CXP-6\CXP-12 connection, supporting camera transmission bandwidths of up to 2500MB/s \5000MB/s
Full-height PCIe card with PCIe Gen 3 x4 interface, supporting up to 3300MB/s bus bandwidth, CXP12 supports a bus bandwidth of up to 6700MB/s

Specifications

CXP interface
Four micro-BNC 75 Ohms(BO-CXP6X4)BO-CXP12X4);
Support PoCXP(Each interface can provide 16W power supply, with a maximum total power of 64W);
Supoort 1.25\2.5\3.125\5\6.25Gbps for BO-CXP6X4 and 1.25\2.5\3.125\5\6.25\10\12.5Gbps for BO-CXP12X4
Camera support
Support area-scan camera, support line-scan camera, support mono-camera,- support color-camera(YCbCr,YUV,RGB and Bayer CFA), Tap support 1X-1Y\1X-1Y2\1X-2YE
Firmware
Single camera Firmware(support one 1- or 2- or 4-connection camera, Support disorderly access of camera cables,support Bayer2RGB)
Four camera Firmware(Support AAAA-MODE and channel A cann connect one 1- or 2- or 4-connection camera;
Support AABB-DUAL-CAMERA-MODE and channel A\B can connect one 1- or 2-connection camera;
Support AABC-THREE-CAM-MODE and channel A can connect one 1- or 2-connection camera, channel B\C can connect one 1-connection camera;
Support ABCD-FOUR-CAM-MODE and channel every channel can connect one 1-connection camera;
LED indicator
4 full-color LEDs that can display the corresponding DIN 1.0/2.3 (Micro BNC) interface status according to CXP specifications
frame buffer
Two 4Gb DDR4-2400 frame buffers(CXP-6)
Four 4Gb DDR4-2400 frame buffers(CXP-12)
Image Processing
Unpacking of 10-/12-/14-bit to 16-bit with selectable justification to LSb or MSb;Bayer CFA to RGB with 3x3 linear interpolation algorithm(just for single-camera-mode and Line supports a maximum of 32768 bytes)
I/O on PCB board
one 2x13 2.54 pitch connector, including the following interfaces (4 differential optical isolation inputs, 4 differential high-speed inputs, 3 differential optical isolation outputs, 2 bidirectional TTL/LVTTL single ended interfaces, 12V and GND, 1 2x3 2.54 pitch connector, including 4 multi card synchronization interfaces)
Pannel IO
Four micro-BNC 75 Ohms(BO-CXP6X4)BO-CXP12X4); one DB26 female connector (4 differential optocoupler isolated inputs, 4 differential communication inputs, 3 differential optocoupler isolated outputs, 2 bidirectional TTL/LVTTL but terminal interfaces, 12V and GND)
PCIe interface
PCle Gen3x4 interface, downward compatible with PCle Gen 2/1 and x2, x1
On-board power input
A onboard 6-PIN PEG connector that must be used when powering the camera with PoCXP
Developing interfaces
GenTL Producer、GenICam，Support Halcon，MVS and other software
Fan
Report FPGA temperature and fan speed information, and manually set the fan speed
Relative humidity
10%-90% （Custody and work）
Dimensions
141.6mm x 104.9mm
Operating System
Windows 10/11/Server 2019(x64)
Power consumption
PCIe + 3.3V: not used, PEG + 12V: used for PoCXP power supply, power consumption is provided by CXP The power consumption of the external device depends on the firmware used, with a typical power consumption of ≤ 20W.
Development examples
Provide sample source code for C/C++ secondary development
Other
Support cascading through IO interfaces and multi-card synchronous triggering acquisition
Storage temperature
-15℃ - 85℃
Operating temperature
0℃ - 50 ℃
