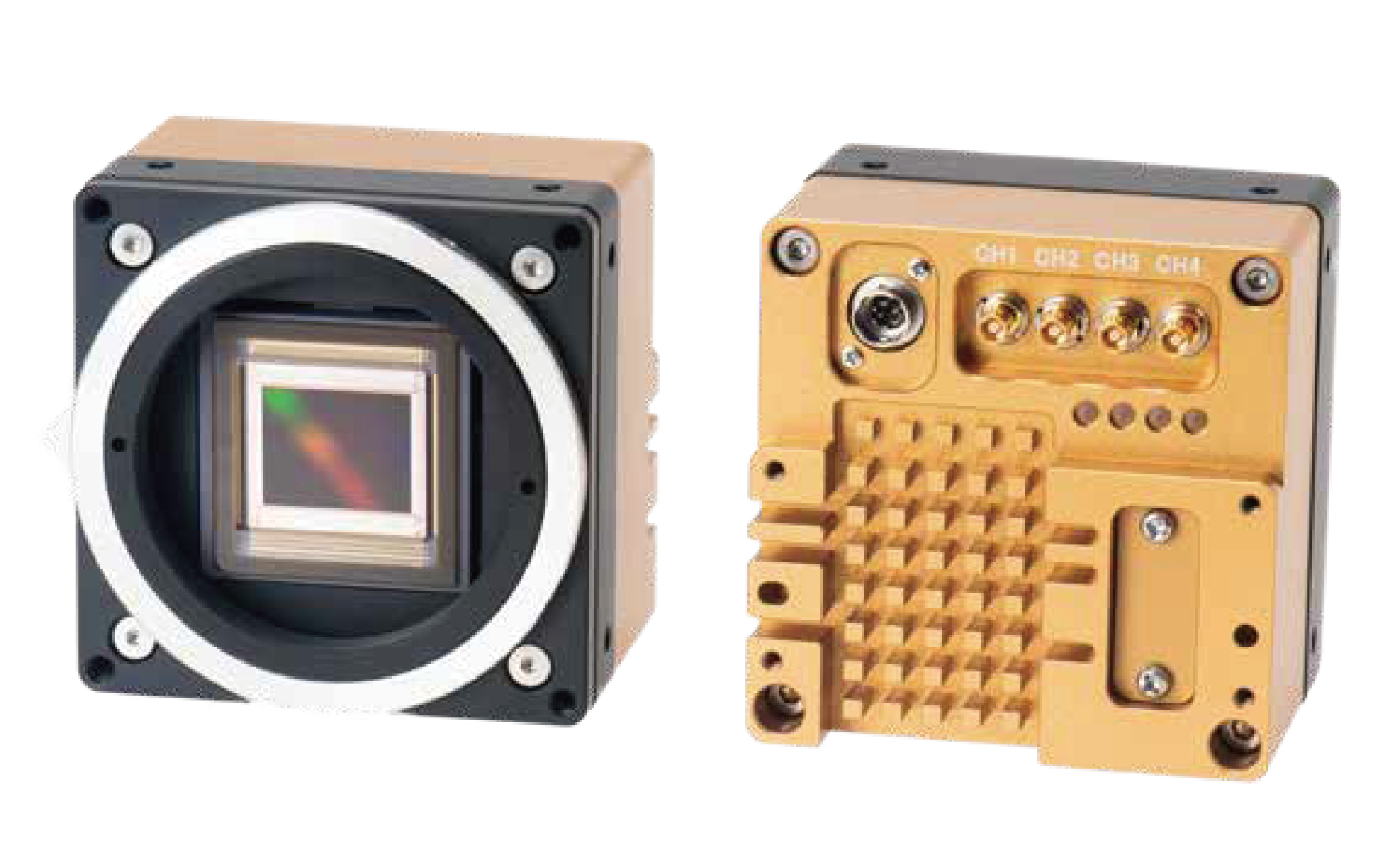

BC-GM/C14M12X4*
The 14MP camera, equipped with Gpixel's GSPRINT5514 sensor, is capable of capturing images at speeds of up to 340 fps and features a CXP P-12 x 4Lane output. It combines high resolution with high speed, boasting a pixel size of 5.5μm. While delivering high resolution, it is also compatible with M58/F/M42 interfaces, making it highly suitable for applications requiring miniaturization and large pixel sizes.
Features
Specifications
- Resolution
- 14M
- CMOS
- GSPRINT5514
- Color
- mono/color
- Frame Rate
- 340FPS
- Pixel Count (HxV)
- 4608x3072
- Sensor Size
- 25.34 x 16.90 mm
- Pixel Size (um)
- 5.5x5.5
- Lens Interface
- F/M42/M58
- Notes
- CXP-12/-10/-6/-3, 4x MicroBNC connectors, side-mounted
Dimensions
