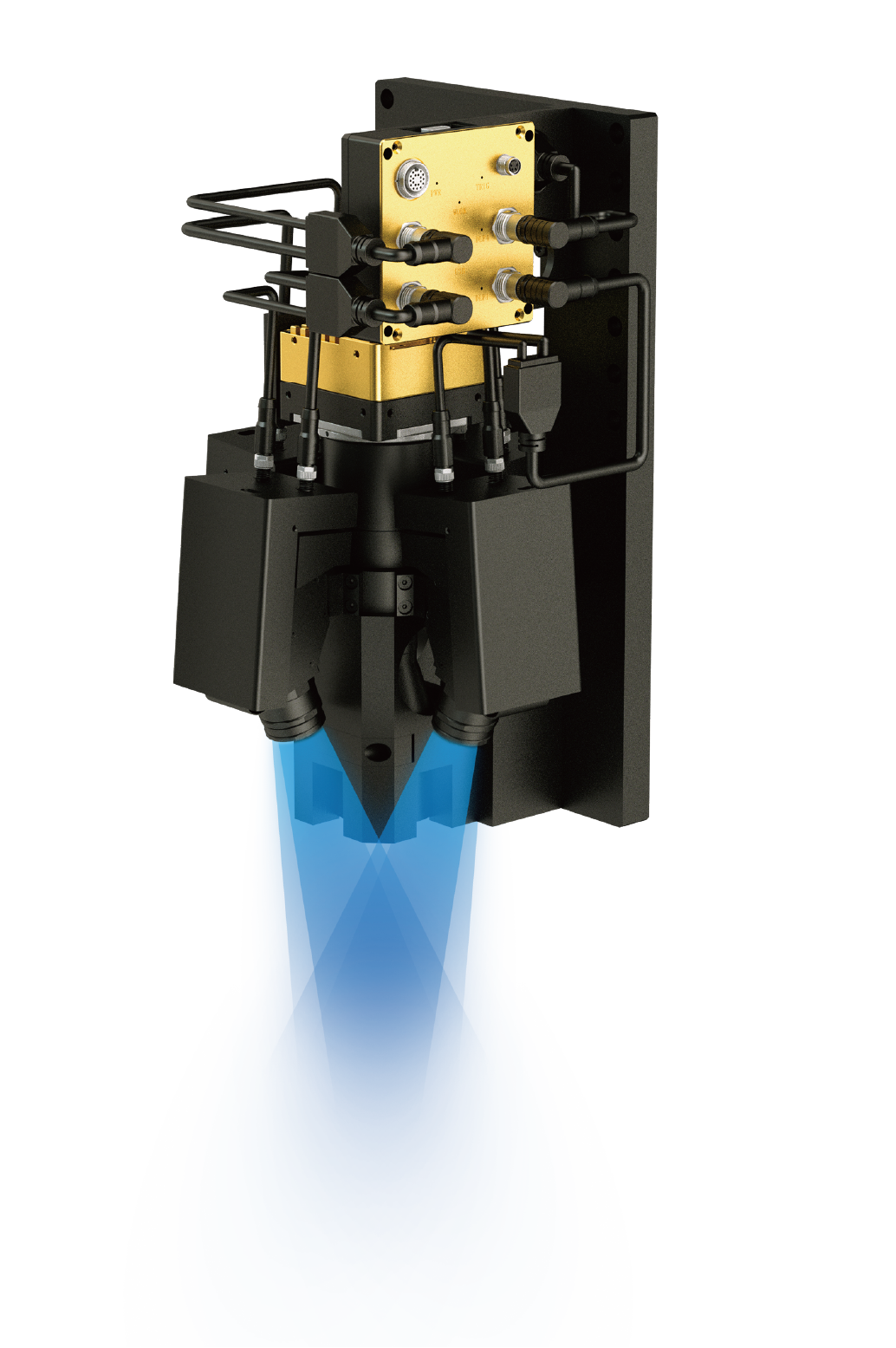

Ultra-high Speed 21M Multi-optic System
The RINDO HR Series 21M multi-optic system, with an industry-leading four-optic collaborative architecture, elevates 3D detection speed to a new level, becoming the fastest multi-optic 3D imaging solution in the industry currently. Equipped with an industrial camera with ultra-high dynamic range, the system can maintain stable and complete high-quality point cloud data collection even when facing complex surface materials such as strong reflection and dark light absorption.
Features
- 228fps camera capture speed, breaking new ground in 3D detection speed;
- Ultra-high dynamic range, compatible with highly reflective and light-absorbing materials;
- Exclusive for high-end SMT 3D AOI and SPI;
- Self-developed core components, ensuring independent control and continuous upgrade,capability of system performance.
