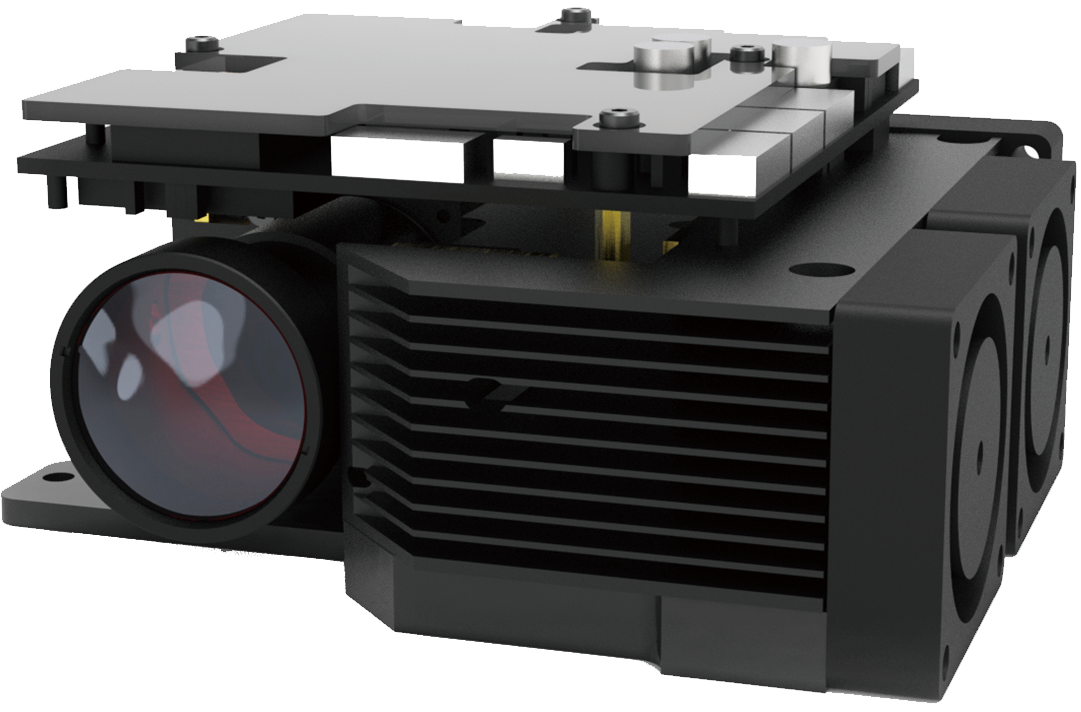

OPR405200
The industrial projection module based on the DLP micromirror chipset is very suitable for the solution of programmable high-speed light graphics. Precise optical design and structural design can ensure high-quality projection effects; the integrated design of the main control board and optical-mechanical module realizes precise light control at the pixel level. It is small in size and provides a standardized interface, which is convenient for users to use and integrate.
Features
- · Use DLP4500，0.45 WXGA DMD
- · Resolution 912×1140
- · Unique 2D graph projection function
- · R/G/B LED light source
- · High graphics rate up to 4225Hz（1 bit）and 120Hz（8 bit）
- · High contrast 800:1, distortion<1%, uniformity>92%
- · Outstanding temperature control system design
Specifications
- Working Distance（mm）MIN
- 300
- Working Distance（mm）TYP
- 2000
- Working Distance（mm）MAX
- 3000
- Projection frame (mm)
- 1667×1042
- Depth of field (mm)
- ±300
- Throw Ratio
- 1.2
- Accuracy（μm）
- 914
- Model
- Upward
- Dimensions（mm）
- 119×109×47
- Distortion
- <1%
- Light Source
- RGB

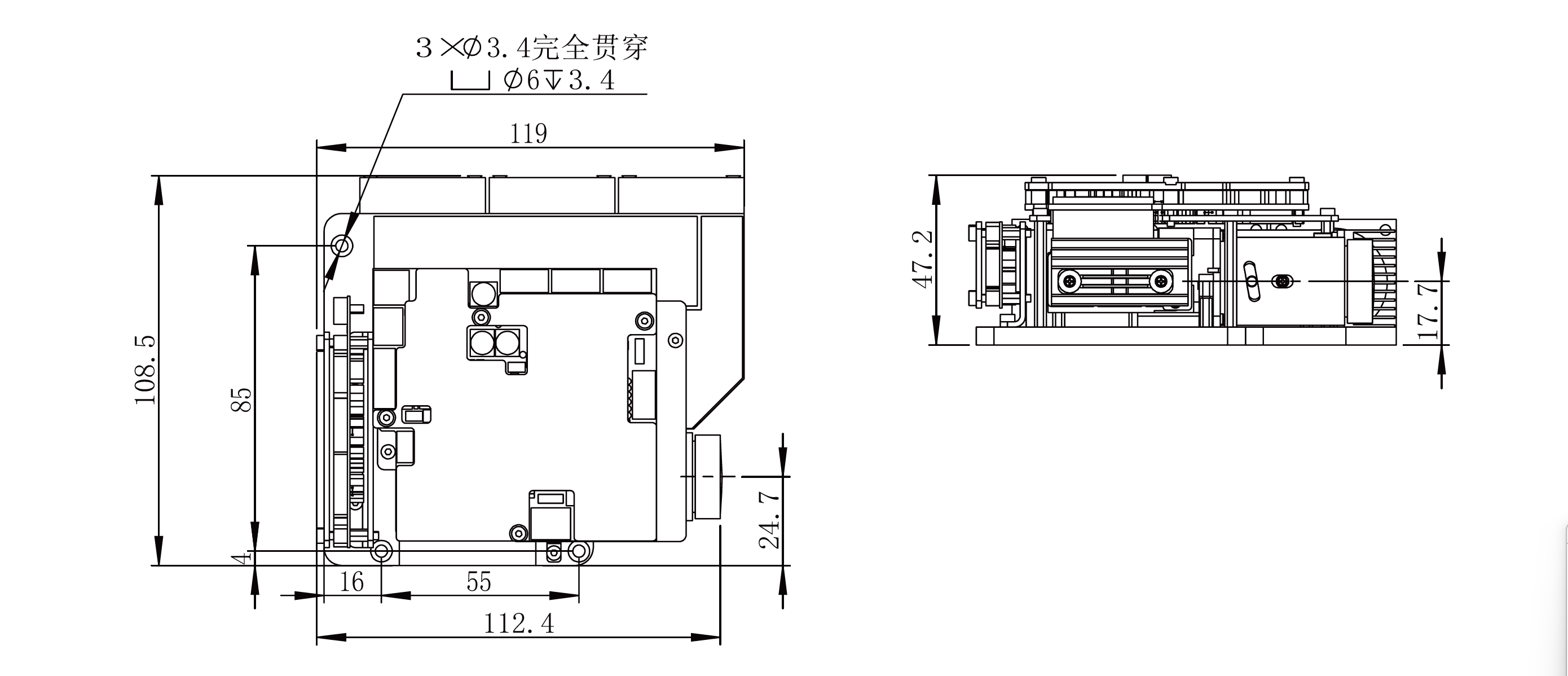

Dimensions
