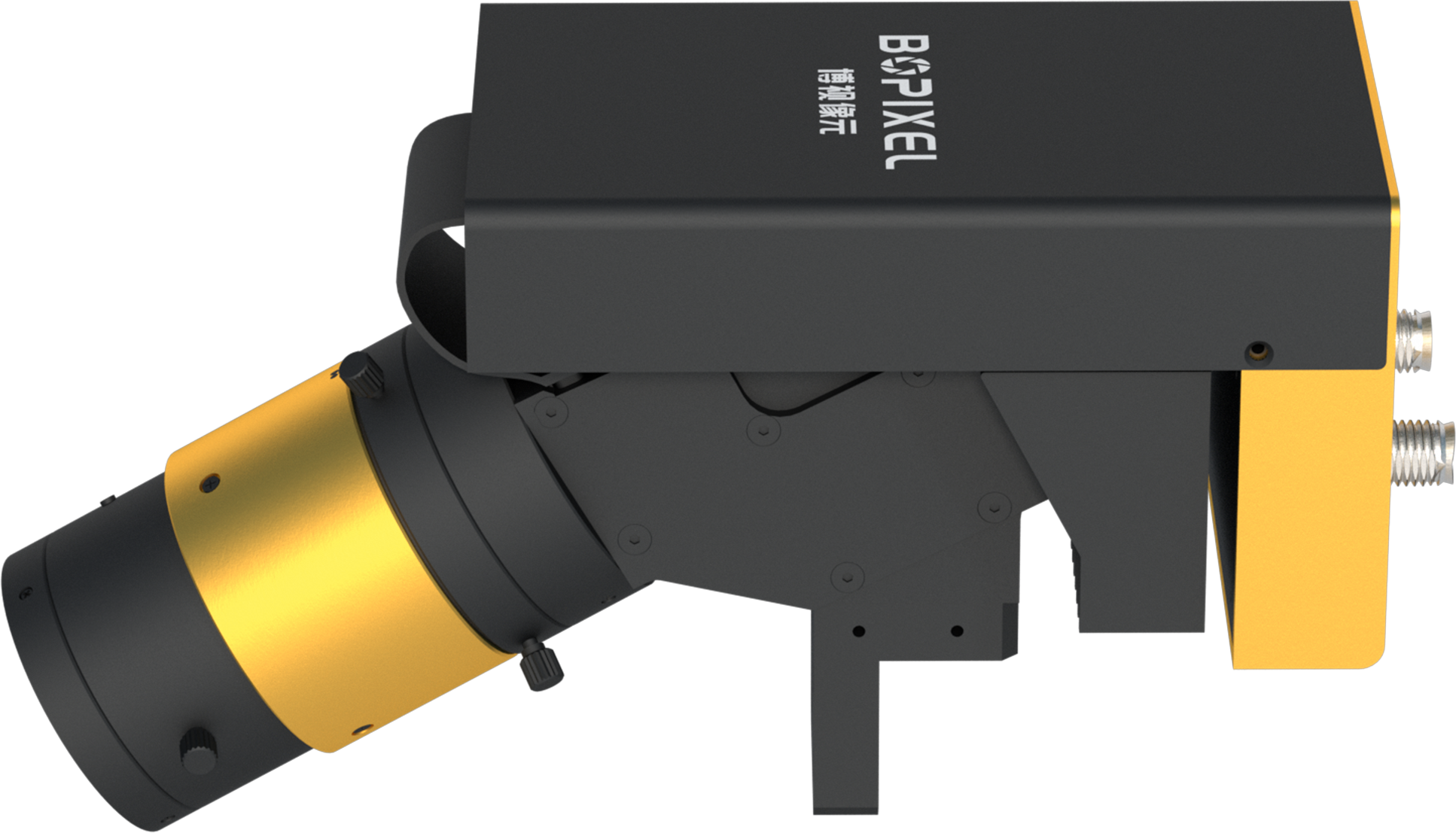

OPR407700
The industrial projection module based on the DLP micromirror chipset is very suitable for the solution of programmable high-speed light graphics. Precise optical design and structural design can ensure high-quality projection effects; the integrated design of the main control board and optical-mechanical module realizes precise light control at the pixel level. It is small in size and provides a standardized interface, which is convenient for users to use and integrate.
Features
- · Resolution 1920×1080
- · Small FOV with high precision, orthograph/Scheimpflug for wider application
- · High graphics rate up to 2847 Hz（1 bit）and 437Hz（8 bit）
- · Contrast 800:1, distortion<0.1%, uniformity>92%
- · LED light source optional
- · Outstanding temperature control system design
- · Compatible with standard C mount
Specifications
- Working Distance（mm）MIN
- 300
- Working Distance（mm）TYP
- 700
- Working Distance（mm）MAX
- 1200
- Projection frame (mm)
- 604×340
- Depth of field (mm)
- ±150
- Throw Ratio
- 1.16
- Accuracy（μm）
- 315
- Model
- orthograph
- Dimensions（mm）
- 144×81×52
- Distortion
- <0.5%
- Light Source
- RGB

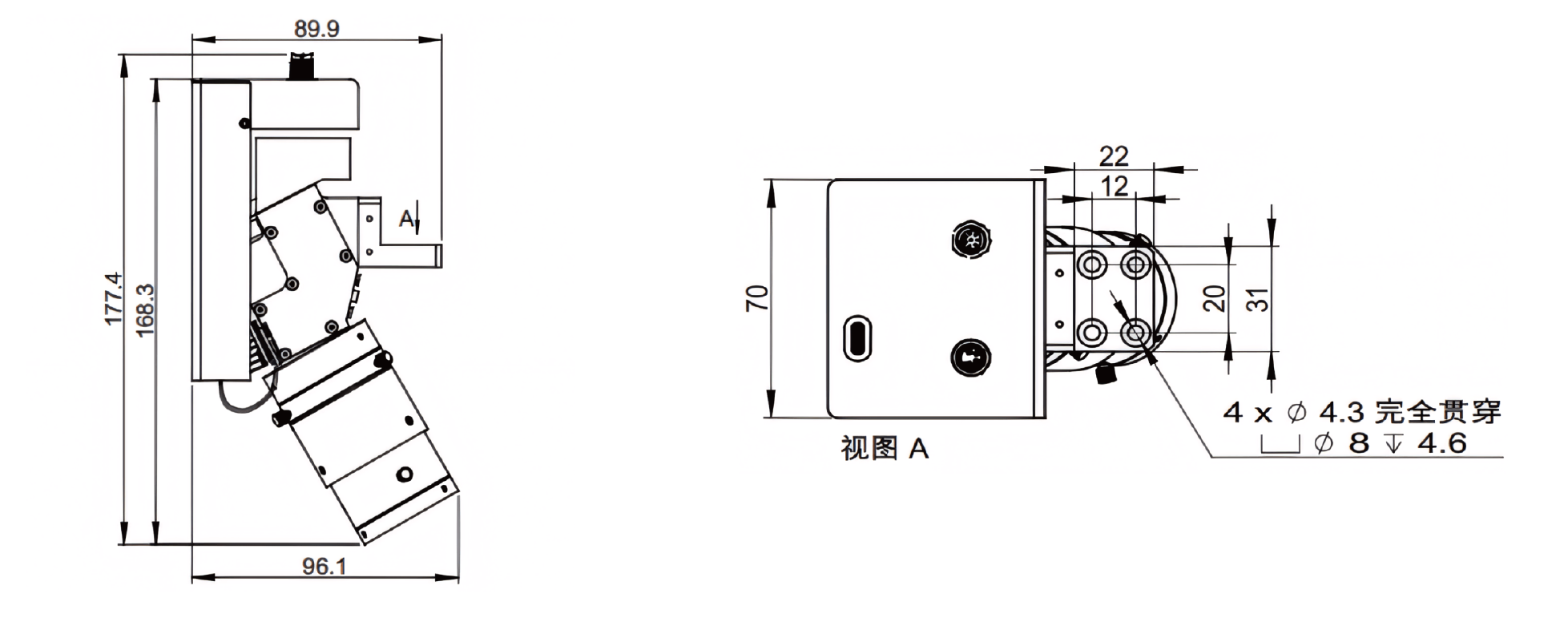

Dimensions
