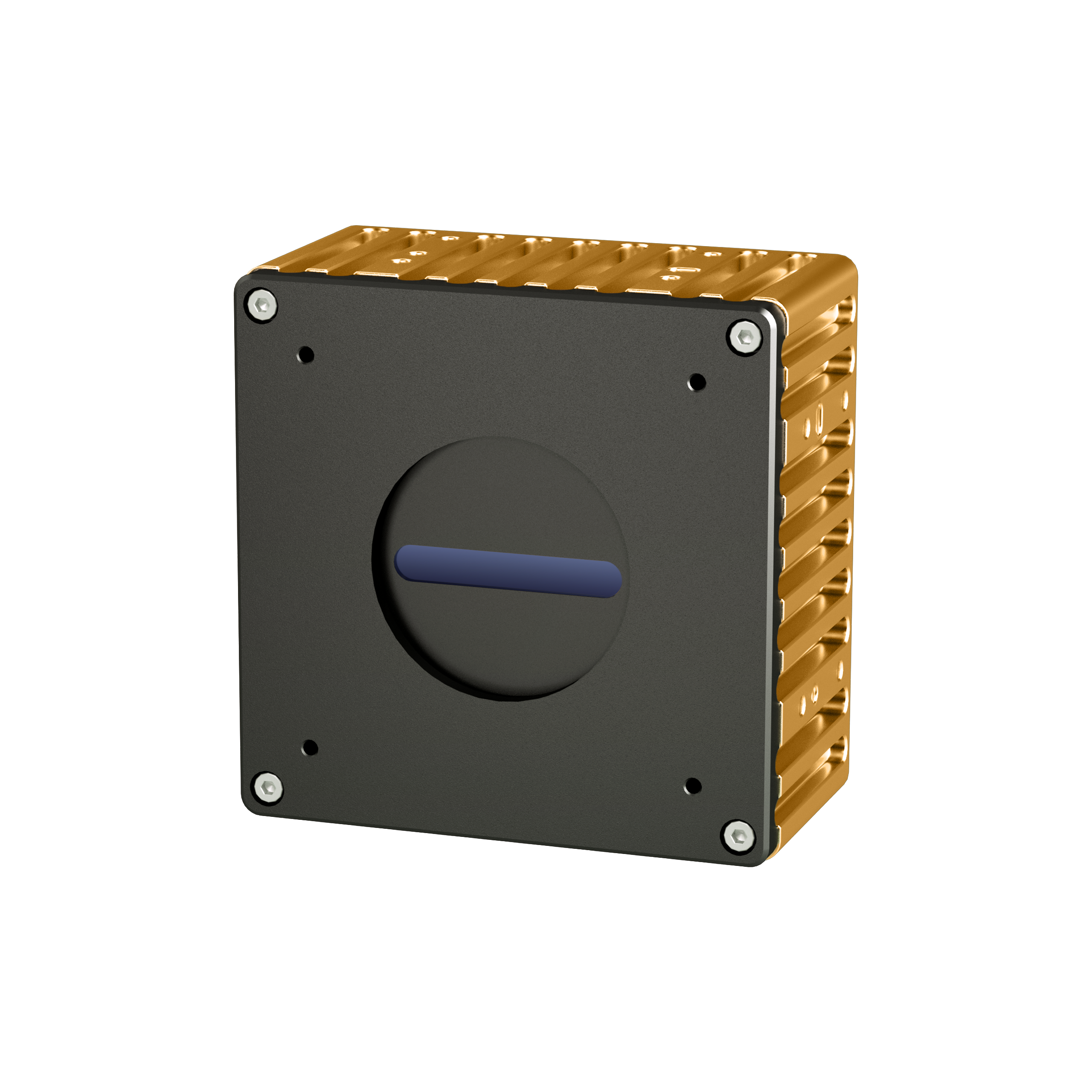

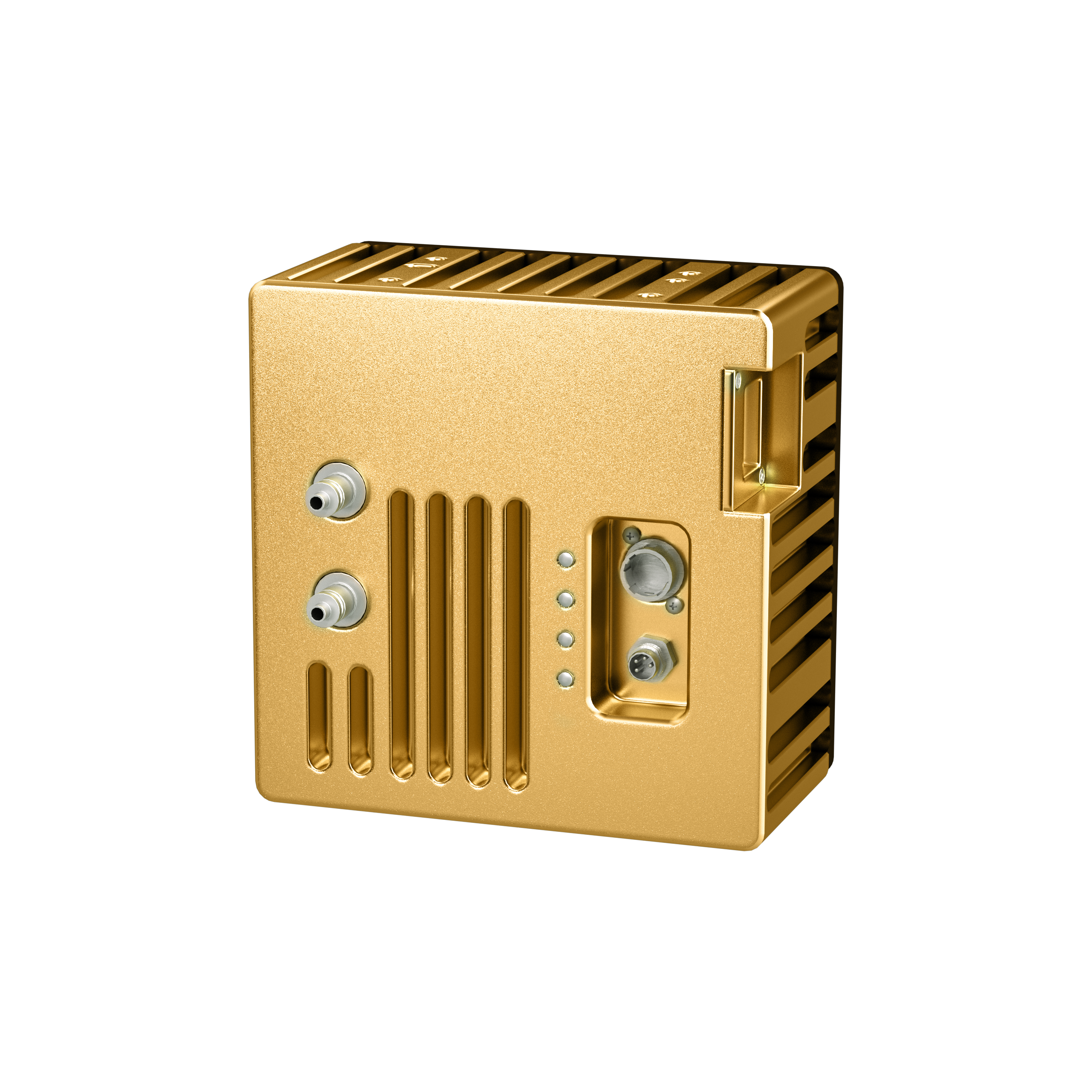

BL-GM8KTD25×4-WA
The ultra-high-speed, high-sensitivity line scan camera is equipped with the GLT5008BSI CMOS sensor produced by GPixel. It is a 5µm pixel back-illuminated CMOS that leverages the advantages of TDI (Time Delay Integration) cameras. It can be used in a variety of applications, such as high-speed imaging under low-light conditions, imaging of large ob jects, and capturing high-speed moving ob jects.
Features
Specifications
- Model
- BL-GM8KTD25×4-WA
- Resolution
- 8K
- CMOS
- GLT5008BSI
- Color
- Mono
- Frame Rate
- 1MHz
- Pixel Count (HxV)
- 8208×288 (256+32)
- Pixel Size (um)
- 5.0×5.0
- Lens Interface
- QSFP28
- Notes
- CXP-12/-10/-6/-3, 4x MicroBNC connectors

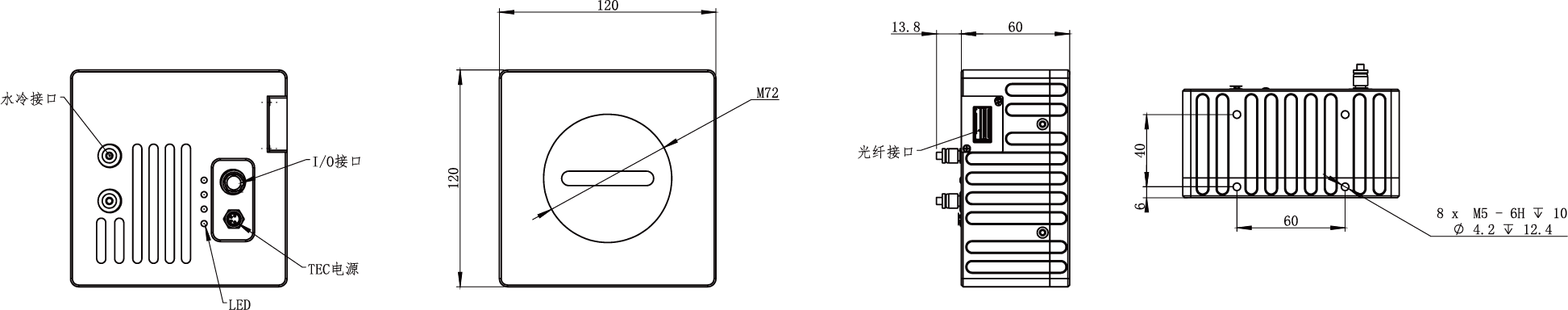

Dimensions
